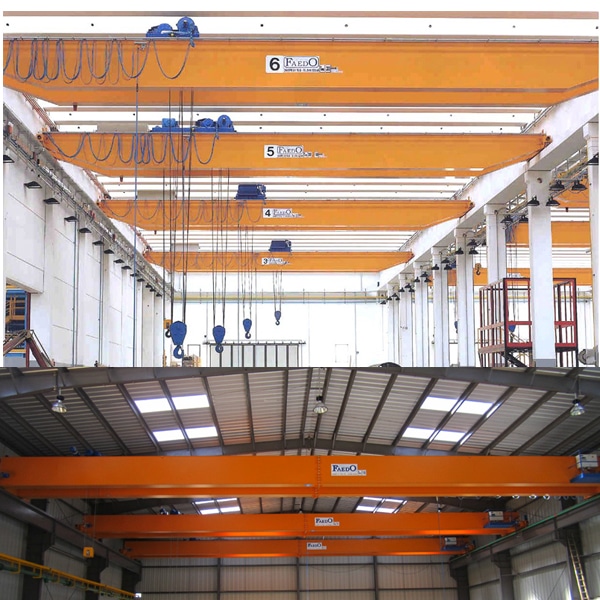

Faedo Cranes

Miles Supply offers Faedo cranes. Faedo cranes can be made of mono-beam or dual-beam, with trolley or trolley hoist winch depending on the capacity and trolley frame sizes and different structures depending on the needs of the customer.

FRAME – The beams are made of sheet steel and are made in caisson type and stiffened with internal diaphragms. The cranes are constructed to A8/M8 class. Stairway to the bridge and protection railings along the entire length of the bridge.

MOVEMENT – Two heads equipped with four or eight steel wheels (depending on the case and of the loads) mounted on bearings with direct coupling to a reducer of pendular type. Electric motors are self-braking soft start two speeds, or is installed electronic inverter for multi-regulation of departures and braking.

The inverter system ensures substantial life of mechanical parts of the machine, a lower load swing and lower machine noise .

LIFTING – Capacity up to 10 tons is installed in a trolley hoist. On bridge cranes capacities higher than 10 tons or at the request of the customer. The trolley is made of a thick tube frame, with translation system to steel wheels to direct clutch operated by a reduction gear with self-braking electric motors.

The lift assembly is made with a reducer with parallel axes of our construction with gears in an oil bath mounted on bearings, or with a planetary gearbox.

We apply a special motor for lifting and a rope drum coupled to a threaded electro-hydraulic brake and clutch elastic wide belt.

RUNWAYS – runways for the cranes. Designed for the customer and the building overhead crane is installed. Can be with caisson beam or beams with HE.

http://www.faedocranes.com/ovehead-cranes#  Call Miles Supply for quote.
