Anchor Sandblast Stencil info

anchor
Anchor Sandblast Stencil products from IPG® provide superior blast resistance, precise and intricate design capabilities, clean transfers, smooth and accurate tracking. See Anchor Sandblast Stencil flyer (they have not updated this with their new Part#s) | Request a Quote here.

Due to supply chain issues, we are temporarily limiting stencil to our existing customers.

Anchor stencil

Style 111 – For hand cutting.
Hand-cut, high quality, durable stencil coated with an advanced medium tack, rubber-based pressure-sensitive adhesive protected by an easy-release-treated HDPE liner. Designed for superior shape carving in marble and granite. Unique rubber formula allows easy cutting with less frequent knife sharpening. Controlled shrinkage gives accurate panel replacement after frosting. Recommended for maximum depth glass etching.

116 SINGLE LINER HIGH TACK MEDIA BLAST STENCIL – MACHINE CUT
Machine-cut, high quality, durable stencil coated with an advanced, high tack, water-based acrylic pressure-sensitive adhesive protected by a clear polyester liner. Designed for slot-hole pattern Gerber® 15” and 30” plotters. The 15” widths will also track accurately in IBM® pattern and friction-fed cutters. 116 is designed and recommended for raw/unfinished hardwood, HDU foam-board, brick, and rough stone. Not intended for use on marble, granite, or polished surfaces.
PRODUCT APPLICATIONS
Water-based acrylic adhesive may transfer to pre-treated / painted surfaces or cause soft woods to splinter upon removal. 30” widths will only track on large pin plotter. Replacement for #125 in Gerber® plotters.

129Y COMPUTER STENCIL
High quality, durable stencil coated with an advanced, medium tack, rubber-based pressure-sensitive adhesive protected by a clear PET liner. Designed for precision cutting IBM® pattern cutters. The slot-hole pattern will also accurately track through Gerber® 15” and friction-fed plotters. #129Y contains a yellow inner sheet of polyester which retains cut designs during liner removal. Recommended for single-process media blast carving of granite or marble.
PRODUCT APPLICATIONS
The 30” will not work on large pin computer cutters. Replaces 790Y in IBM® plotter applications.

ANCHOR GOLD DOUBLE LINER MEDIA BLAST:
790Y ANCHOR GOLD DOUBLE LINER MEDIA BLAST STENCIL – HAND CUT
High quality, durable stencil coated with an advanced, medium tack, rubber-based pressure-sensitive adhesive protected by a clear PET liner. Contains a yellow inner sheet of polyester which retains cut designs during liner removal.
Single-process and double-process media blast carving of granite or marble.

790YS ANCHOR GOLD DOUBLE LINER MEDIA BLAST STENCIL – MACHINE CUT
High quality, durable stencil coated with an advanced, medium tack, rubber-based pressure-sensitive adhesive protected by a clear PET liner. The 15” width will track and process on both IBM® and Gerber® pattern cutters. The 30” width will fit only Gerber® #750 plotter machines. Tractor-feed holes are punched through liner and rubber. The specially treated polyester liner retains cut designs during transfer from plotter to stone.
Single-process and double-process media blast carving of granite or marble. Replaces #790Y in Gerber® plotter applications.

790YT ANCHOR GOLD DOUBLE LINER MEDIA BLAST STENCIL – MACHINE CUT
High quality, durable stencil coated with an advanced, medium tack, rubber-based pressure-sensitive adhesive protected by a clear PET liner. Half inch on center hole pattern designed for IBM® sprockets. Tractor-feed holes are punched through liner and rubber. The specially treated polyester liner retains cut designs during transfer from plotter to stone.
Single-process and double-process media blast carving of granite or marble. Replaces #790Y in IBM® cutter applications.

Anchor stencil Intertape changed the style codes of all 122, 123, 123Y, 124 124Y, 154, and 154Y products. All 122, 123, and 123Y products have a product code of 790Y. All 124 and 124Y products have a new code of 790YS, and all 154 and 154Y products will now be 790YT. They also consolidated the 123 and 123Y, 124 and 124Y, and 154 and 154Y products,

SUMMARY:
Intertape style code will CHANGE: all 122, 123, 123Y, 124 124Y, 154, and 154Y products.
– All 122, 123, and 123Y products new code of 790Y.
– All 124 and 124Y new code 790YS, and
– All 154 and 154Y products will now be 790YT.

Anchor Sandblast Stencil Tech Sheets

111 Anchor hand-cut stencil technical data sheet
116-Anchor High Tack stencil technical data sheet
129Y-Anchor stencil technical data sheet
790Y-Anchor Hand Cut stencil technical data sheet
790YS-Anchor Gerber stencil technical data sheet
790YT-Anchor IBM stencil technical data sheet
791YT-Anchor Precision stencil technical data sheet

To request an Anchor sandblast stencil quote or for additional information about Anchor stencil products, please request a quote or contact us at Miles Supply today.

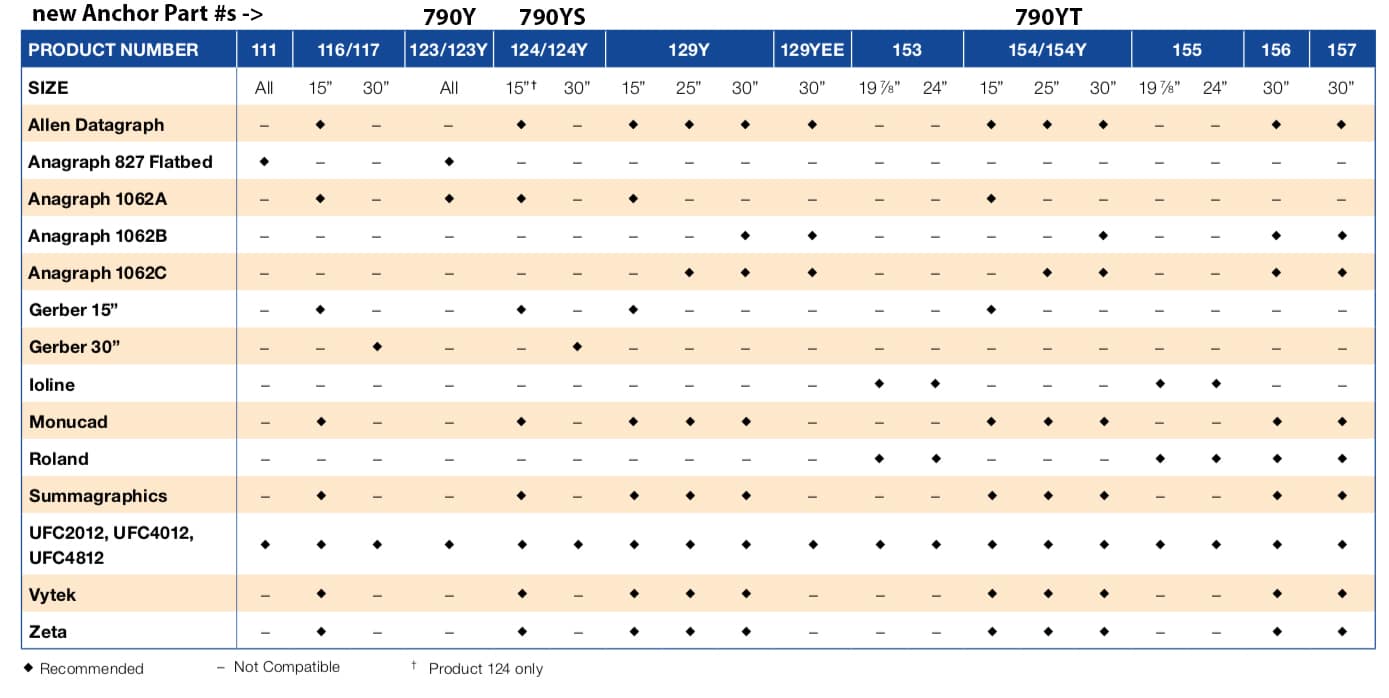

find your plotter to see your stencil type

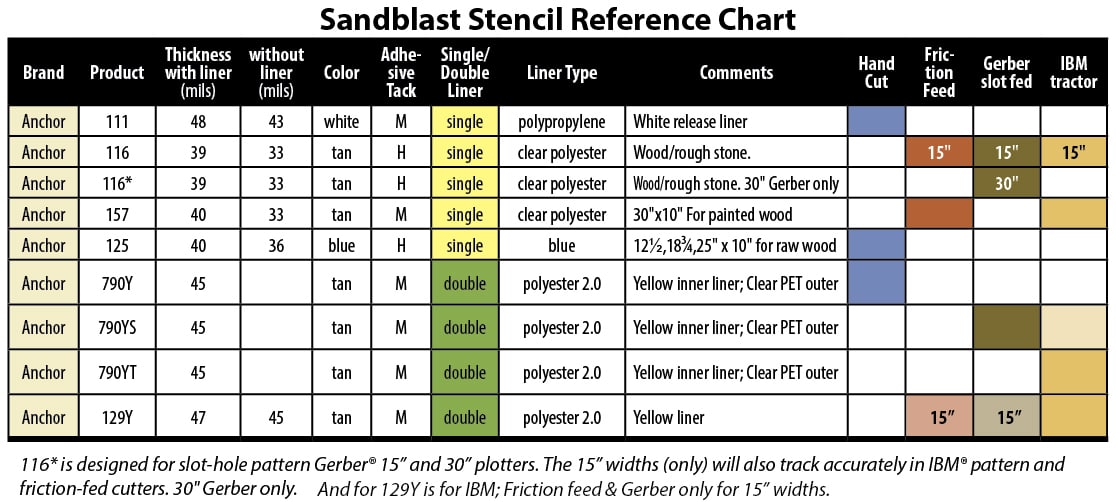

from their flyer with their updated part #s:which anchor stencil for plotter? see chart

also extracted info from their flyer:

125 Anchor A high-tack stencil designed for sandblasting on raw wood and urethane foam board; easy-release light blue liner; the strength of the adhesive eliminates the need for filler or spray adhesives. AM1066 12.5″x10″and AM000032 25″x10″ “not intended for marble, granite, polished
CAUTION: This stencil has a very aggressive adhesive and is not recommended for use on some woods without first testing a sample piece; do not use on pre-painted, pretreated or glass surfaces.

157 Anchor Same construction as our medium-tack 117 computer stencil, except that the hole pattern is for use on standard 1⁄2” center sprocket system machines and edges are trimmed. AM000058
Note: Style 157 will not work on the large pin 30” plotter; style 117 is recommended for this use. (so you’ll need 117 info: Designed for use with computerized cutting machines; trimmed edges on 15” roll allows smooth and easy tracking through the machine; a strong, clear film liner provides extra rigidity; the 15” width will track through most computer cutters; the 30” width will track only through a large pin plotter and the stencil rubber extends to the edge of the liner; after letters and designs are cut, they must be taped for transferring the stencil to stone; use with IPG/Anchor Filler #211.)

Anchor Stencil_157_Technical Data Sheet
Anchor Stencil_125_Technical Data Sheet

Excerpt from our sandblast catalog – reference chart for 3M to Anchor stencil comparison:

3M to Anchor stencil comparisonNOTE: 3M no longer makes stencil; use this as a reference to find your substitute stencil.

*116 is designed for slot-hole pattern Gerber® 15” and 30” plotters. The 15” widths (only) will also track accurately in IBM® pattern and friction-fed cutters.
